NetSuite AP Data Mapping Template

Written by Uday Kumar Updated June 04, 2026 11:26

Overview

This reference reproduces the Auditoria AP business objects data mapping template for NetSuite, one section per workbook sheet. Each table lists the Auditoria field name, field type, description, and the corresponding source-of-record field. Cells that are blank in the template are kept blank.

Note: Standard fields are mandatory. Extended fields are optional and are defined during implementation.

Vendor

A vendor (supplier) is a company or person your organization buys goods or services from. The vendor record holds the master data used to identify and pay that supplier, such as name, identifiers, tax details, address, and contacts.

Table 1. Vendor

Auditoria Vendor Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name	UI Display field
Vendor Name	Standard	Supplier's Business Name	companyName	COMPANY NAME
ID	Standard	The unique ID of the Supplier record in the SOR	id
Classification	Standard	Supplier's category from the SOR (Optional)
Status (Active/Inactive)	Standard	Is the Supplier marked as active in SOR? Yes/No	isInactive	VENDOR IS INACTIVE
Tags	Standard	NOT MAPPED TO AN SOR FIELD
Entity	Standard	This is the list of entities that the Vendor belongs to in the SOR	subsidiary	SUBSIDIARY
Email	Standard	Primary email for Supplier	email	E-MAIL
Tax ID	Standard	Business tax ID	taxIdNum	TAX ID
Address	Standard	Mailing address of the Supplier	addressbook	Address
Contacts	Standard	List of Contacts for Vendor - contacts we do business with	contacts	Contacts
Business Name	Standard	Another name that the Supplier is doing business as and is in the ERP or W9	companyName	COMPANY NAME
Tax ID Type (EIN/SSN)	Standard	EIN vs SSN	type, taxIdNum (calculated field)	TAX ID, TYPE
Notes	Standard	NOT MAPPED TO AN SOR FIELD
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Payment

A payment is the disbursement your organization makes to settle one or more vendor bills. The payment record holds the payment header data, such as amounts, currency, bank account, dates, and processing status.

Table 2. Payment

Auditoria Payment Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default Netsuite UI Field Name	SoR Payment Record Field Name (FORMULAS NOT SUPPORTED)
Vendor Name	Standard		Vendor Name
Currency	Standard	Base Currency	Currency
Unapplied Amount	Standard	DO NOT MAP Calculated by AAI	N/A	N/A
Base Applied Amount	Standard	DO NOT MAP Calculcated by AAI Invoices paid in payment currency	N/A	N/A
Company	Standard		Subsidiary
Bank Account	Standard		N/A (no standard equivalent)
Discount Taken	Standard		Discount Amount
Status (In Progress/Complete/Cancelled/Awaiting Settlement)	Standard	Payment processing state, wherein In Progress is applied when payment is not specifically awaiting settlement, complete, or canceled.	Status
Total Amount	Standard	DO NOT MAP Calculcated by AAI Payment Amount in Base Currency	N/A	N/A
Foreign Currency	Standard	Payment currency	Foreign Currency
Foreign Unapplied Amount	Standard	DO NOT MAP Calculated by AAI	N/A	N/A
Payment Type	Standard		Payment Method
Settlement Date	Standard		Payment Date
Payment Date	Standard		Payment Date
Applied Amount	Standard	Invoices paid in payment currency	Amount
Foreign Amount	Standard	Payment Amount in payment currency	Foreign Amount
Payment Category	Standard		Payment Method
Settlement Run ID	Standard		N/A (no standard equivalent)
Transaction Reference	Standard		Transaction Number
Notes	Standard	NOT MAPPED TO AN SOR FIELD	N/A	N/A
Exchange Rate	Standard	Exchange Rate from the Vendor Bills	Exchange Rate

Payment line items

Payment line items list the bills settled by a payment, with one line for each bill paid. Each line links the payment to a specific vendor bill and the amount applied to it.

Table 3. Payment line items

Auditoria Payment Line Items Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default Netsuite UI Field Name
Vendor Bill Internal Id	Standard	The line items represent the bills paid with the payment, one line for each bill paid	Internal ID
Vendor Bill External Id	Standard		External ID
Amount Paid	Standard	Amount Paid	Amount Paid
Invoice Date	Standard		Transaction Date
Due Date	Standard	Due date of the bill	Due Date
Amount	Standard	Total Amount of the BIll	Amount
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Bill

A bill (vendor invoice) is the document a vendor sends to request payment for goods or services. The bill record holds the invoice header data, including amounts, currency, dates, status, and payment terms.

Table 4. Bill

Auditoria Vendor Bill Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name	UI Field
Vendor Bill Internal ID	Standard	The unique ID of the supplier bill record in the SOR	internalId
Vendor Bill Ext ID	Standard	The supplier's bill ID, as shown on the original bill received from the respective supplier.	tranId	REFERENCE NO.
Due Date	Standard	The due date of the supplier bill	dueDate	DUE DATE
Foreign Currency	Standard	Currency of the bill	foreignCurrency	CURRENCY
Total Amount	Standard	NOT MAPPED TO AN SOR FIELD. This is the Converted Total in the Book Currency. It's computed by Auditoria (see column D).	exchangeRate,userTotal
Total Tax	Standard	This is the Total Tax amount	taxTotal
Amount Remaining	Standard	NOT MAPPED TO AN SOR FIELD This is the Total Amount Less Amount Paid in book currency. This field is calculated by Auditoria. It's computed by Auditoria (see column D).	exchangeRate,foreignPayment.foreignAmountPaid, userTotal
Foreign Amount Paid	Standard	This is the amount paid in the Bill Currency	foreignPayment.foreignAmountPaid
Vendor Name	Standard	DO NOT MAP. DERIVED FROM BILL-VENDOR RELATIONSHIP. Vendor's name for the bill	entity	VENDOR
Status (Draft/Open/Partially Paid/Paid/Cancelled)	Standard	Invoice status in the ERP. ERP statuses should be mapped to the Auditoria statuses (see column A).	status	STATUS
Age	Standard	NOT MAPPED TO AN SOR FIELD This is the age of the bill calculated by Auditoira.
Exchange Rate	Standard	FX rate to convert from bill currency to book currency	exchangeRate	EXCHANGE RATE
Total Discount Applied	Standard	This is the amount of any Discount Applied.	this is custom field in NS
Invoice Received Date	Standard	The Date the email with the vendor bill was received.	This is custom field in NS.
Payment Terms	Standard	These are the payment terms for a bill.	terms	TERMS
Foreign Amount Remaining	Standard	This is the Foreign Total less the Foreign Amount Paid in the bill currency.	foreignPayment.foreignAmountPaid, userTotal
Entity	Standard	This is the entity for the bill. This field is usually called "Company" in Workday.	subsidiary	SUBSIDIARY
Date	Standard	The date of the supplier bill	tranDate	DATE
Currency	Standard	This is the Book Currency for the entity of the bill.	baseCurrency
Bill To Address	Standard	NOT MAPPED TO AN SOR FIELD This field is extracted from the bill and used to assign entity and/or vendor when needed.
Net Amount	Standard	This is the amount of the bill net of taxes	userTotal, taxTotal
Amount Paid	Standard	NOT MAPPED TO AN SOR FIELD This is the Foreign Amount Paid converted to Book Currency using Exchange Rate. It's computed by Auditoria (see column D).	exchangeRate,foreignPayment.foreignAmountPaid
Foreign Total	Standard	Bill total from the invoice in Bill Currency	userTotal	AMOUNT
Tags	Standard	NOT MAPPED TO AN SOR FIELD
Notes	Standard	NOT MAPPED TO AN SOR FIELD
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Bill line items

Bill line items are the individual lines on a vendor bill. Each line records what was billed, such as the amount, quantity, account, tax code, and any matched purchase order or contract line.

Table 5. Bill line items

Auditoria Vendor Bill Line Items Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name	UI Field
Price	Standard	This is the line price on the bill. When a PO is matched, the PO line price will take precedent over the bill line price. (if applicable)	rate	RATE
Invoice Service Period Start	Standard	This is the service period start for an invoice. (if applicable)	amortizStartDate	AMORT. START
Invoice Service Period End	Standard	This is the service period end for an invoice. (if applicable)	amortizationEndDate	AMORT. END
Item ID	Standard		item	ITEM
GL Account	Standard		account	ACCOUNT
Tax Code	Standard	The tax code list. Line level selection.	taxCode
Prepaid	Standard	This is an optional field that can be written to Netsuite if needed as a Yes or a No. Auditoria will calculate the prepaid as follows. If an invoice has a service period with and end date that is in the future, then the invoice should be classified as a prepaid.	This is custom field in NS.
Amount	Standard	Amount for the line	amount	AMOUNT
Quantity	Standard	Quantity for the line (if applicable)	quantity	QUANTITY
Description	Standard	Description of the line	memo	MEMO
PO Line Number	Standard	Purchase Order line number (if applicable)	orderLine	Purchase Orders
Purchase Order Number	Standard	Purchase Order for the invoice line (if applicable)	orderDoc	Purchase Orders
Line Type	Standard		expenseList vs itemList	Expense vs Items
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Purchase order

A purchase order (PO) is the document your organization issues to a vendor to authorize a purchase before goods or services are delivered. The purchase order record holds the PO header data, such as vendor, buyer, requester, currency, status, and total amount.

Table 6. Purchase order

Auditoria Purchase Order Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name	UI Field
Vendor Name	Standard		entity	VENDOR
Last Modified Date	Standard		lastModifiedDate	DATE
Buyer	Optional
Status (Draft/Open/Closed/Canceled)	Standard		status	STATUS
Entity	Standard		subsidiary	SUBSIDIARY
Requisition Number	Optional
Requester	Optional
Currency	Standard		currencyName	CURRENCY
Created Date	Standard		createdDate	DATE
Purchase Order Number	Standard		tranId	PO #
Total Amount	Standard		amount	TOTAL
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Purchase order line items

Purchase order line items are the individual lines on a purchase order. Each line records what was ordered, such as the amount, quantity, type (goods or services), account, and status, and supports matching against bill lines.

Table 7. Purchase order line items

Auditoria Purchase Order Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name	UI field
Line Number	Standard		line	internal to NS. not shown on UI.
Account	Standard		account	ACCOUNT
Service Period Start	Standard	Only applicable for Services type	custom field in NS
Service Period End	Standard	Only applicable for Services type	custom field in NS
Type (Goods/Services)	Standard		itemList vs expenseList	Items vs Expenses
Line Status (DRAFT/ OPEN/ CLOSED/ CANCELED)	Standard		calculated from amounts if (matchedamount<amount) then OPEN else CLOSED
Item ID	Standard		item	ITEM
PO Line Description	Standard		description	MEMO
Rate	Standard	Only applicable for Goods Type	rate	COST
PO Line Amount	Standard		amount	AMOUNT
Matched Quantity	Standard		quantityBilled	BILLED
Quantity	Standard	Only applicable for Goods Type	quantity	QTY
Matched Amount	Standard	Only applicable for Services type	amountBilled	BILLED
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Master item

A master item is a product or service defined in the system of record that can appear on transactions. The master item record holds item attributes such as item ID, name, rate, vendor, and account.

THIS IS OPTIONAL

Table 8. Master item

Auditoria Vendor Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name	UI Field
Item ID	Standard	Item ID (called the number in NetSuite)	internalId	INTERNAL ID
Item Name	Standard	Description of item	displayName	ITEM NAME/NUMBER
Rate	Standard	The price per item unit	cost	PURCHASE PRICE
Vendor	Standard	The vendor for this item (can be blank)	itemVendor	Vendors
Account	Standard	GL Account for items	cogsAccount	COGS ACCOUNT
Extended Fields (Name/Value pairs)	Extended - THESE ARE OPTIONAL	TO BE DETERMINED DURING IMPLEMENTATION

Item receipt

An item receipt records the goods or services received against a purchase order. The item receipt record holds header data such as receipt ID, entity, vendor, receipt date, the related purchase order, and currency.

Table 9. Item receipt

Auditoria Supplier Contract Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Field Name
Receipt	Standard	Item Receipt ID / Transaction ID	Ref No
Entity	Standard	Company, entity, subsidiary of the receipt	Subsidiary
Vendor	Standard	Vendor or supplier of the receipt (will be the same as the PO vendor)	Customer
Receipt Date	Standard	The date the receipt took place	Date
Business Document Reference	Standard	The Purchase order associated with the receipt	Created From
Currency	Standard	The currency of the transaction	Currency

Item receipt lines

Item receipt lines are the individual lines on an item receipt. Each line records the item, quantity received, matched purchase order line, rate, and amount received.

Table 10. Item receipt lines

Auditoria Purchase Order Record Field Name (As seen in Auditoria console)	Auditoria Field Type (STANDARD FIELDS ARE MANDATORY)	Description (what does the field represent)	Default NetSuite Financial Management Record Field Name
Item ID	Standard	The Item ID Display ID	Item
Description	Standard	The Item ID Name	Description
Type	Standard	Goods vs services	Item or Expense
Quantity Received	Standard	The qty received in the item receipt	quantityRemaining
PO Line	Standard	The matched PO line	orderLine
Rate	Standard	The Rate for goods types	Rate
Amount Received	Standard	This is for service type (expense) lines and would be blank for item type or good types	Amount

Status mapping

Status mapping defines how the statuses in your system of record (SOR) translate to the statuses Auditoria supports.

Table 11. Purchase Order

Auditoria Supported Status	Default NetSuite Record Field	Mapping for Purchase Order Status
Purchase Order Status Auditoria	Status
Canceled
Open	Open
Draft
Closed	Closed, Fully Billed, Rejected By Supervisor

Table 12. Vendor Bill

Auditoria Supported Status	Default NetSuite Record Field	Mapping for Vendor Bill Order Status
Vendor Bill Status Auditoria	Status
Draft	Pending Approval
Open	Open, Approved
Partially Paid	Paid Partially
Paid	Paid in Full
Cancelled	Canceled, Rejected
Other

Table 13. Vendor Bill Payment

Auditoria Supported Status	Default Netsuite Record Field	Mapping for Payment Status
Payment Status	Status
Awaiting settlement	Pending
Complete	Paid, Deposited, Paid In Full, Approved
Cancelled	Failed, Data Error, Unapproved, Voided
In Progress	Processing, Sent For Processing, Re-Queued, Queued, Not Deposited, Open, Pending Approval, [empty]

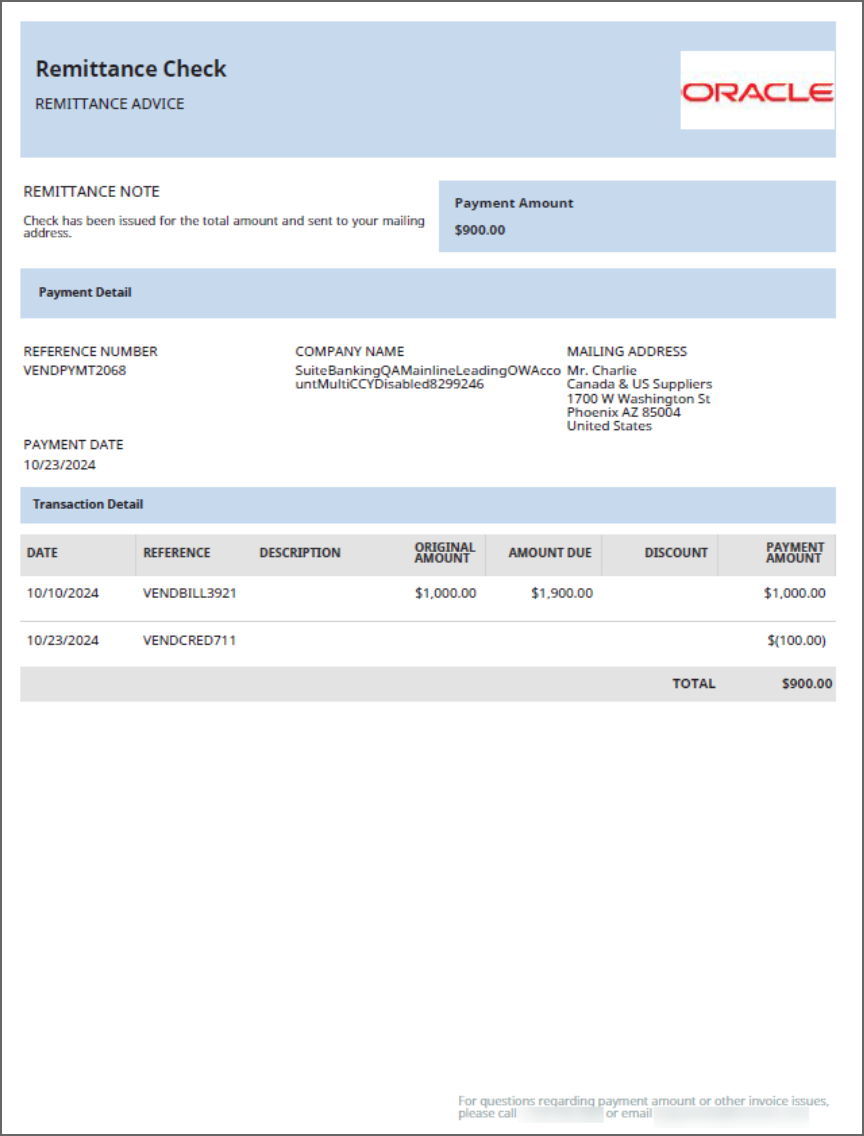

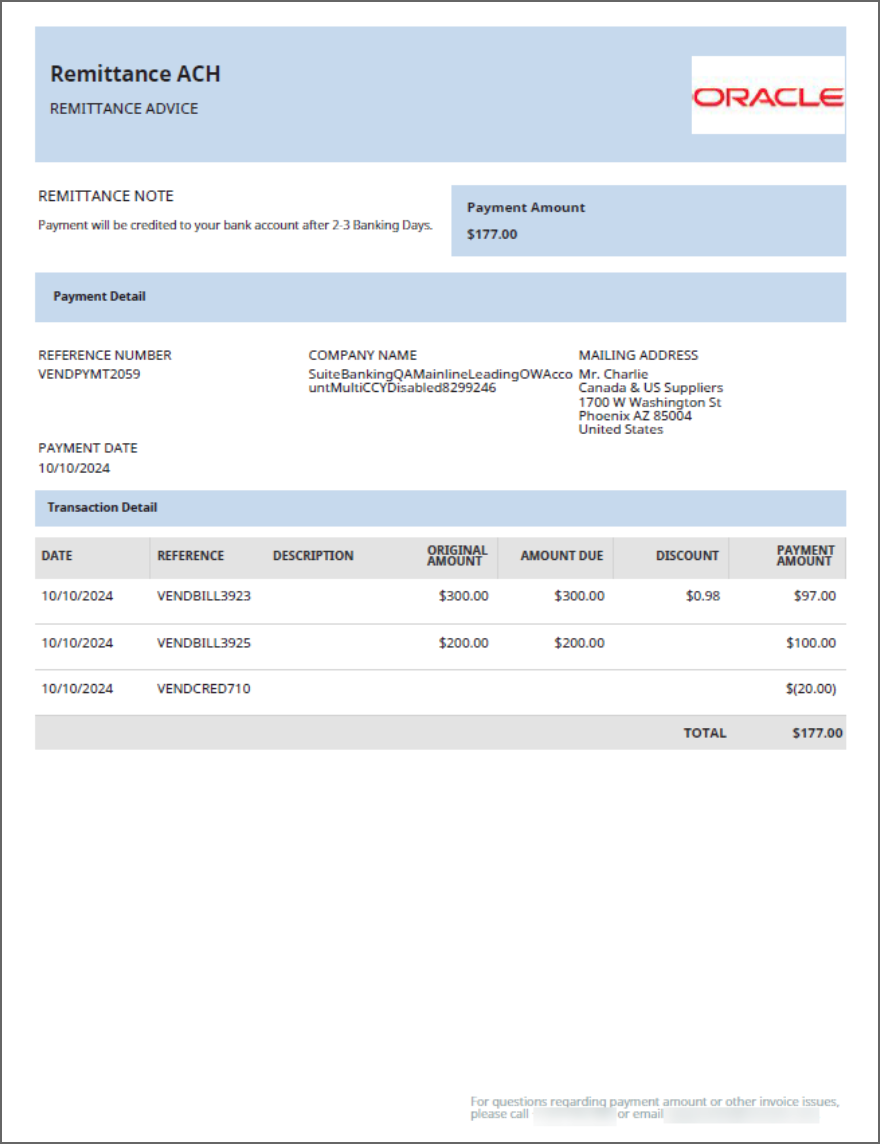

Remittance advice samples

This sheet holds sample remittance advice layouts used as reference during implementation.

Version history

The version history records each revision of this template, including the version number, date, editor, and a summary of changes.

Table 14. Version history

Version	Date	Editor	Description
v2	2025-03-18	Aaron Clifton	Added sheets for Payment and Payment Line Items w/ pending eng review status
v3	2025-03-21	Aaron Clifton	Added section for Payment status mapping to Status Mapping sheet
v4	2025-04-10	Aaron Clifton	Added additional options to Netsuite Default Status Mapping
v5	2025-05-05	Taylor Schreiber	Added the Item receipt and Item Receipt Lines tabs
v6	2026-01-16	Adina Simu	Added Population method for the field, Field type

For the complete template, download the Auditoria NetSuite AP business objects data mapping template.

Attachments

Auditoria AP Business Objects - Netsuite - Data Mapping Template for Implementations.xlsx 200 KB
