Overview
Use the Connected Systems view on the System Settings page to review, update, sync, or delete systems already connected to your Auditoria tenant. This view lists every configured connection in your tenant, including enterprise resource planning (ERP) systems, accounts payable (AP) systems, mailboxes, and Composite SOR instances.
Understanding Connection Cards
Each connected system appears as a card with the system logo, connection name, connection details, and action controls. Composite SOR cards additionally list the contributing connected systems below the main connection details.
Table 1. Connection card fields
| Field | Description |
|---|---|
| Composite Instance Name | Name of the Composite SOR instance. Displayed only on Composite SOR cards. |
| Instance Name | Name assigned to the connection during configuration. |
| Initial Connection | Date and time the connection was first established. |
| Initial Connection By | Name of the user who created the connection. |
| Token | Authentication token associated with the connection. |
| Last Sync | Date and time of the most recent successful sync. |
| Credentials Expires on | Date when the connection credentials expire. Displays NA if no expiration applies. |
| Used by | Number of SmartFlows that use this connection. |
Connection card actions
Each card includes the following controls:
- Update: Opens the connection's settings page so you can modify the configuration.
- Delete icon (trash): Deletes the connection and all associated data.
- Sync icon (refresh): Starts an on-demand sync for the connection. The tooltip reads Initiate Sync Now.
- Sync status bar: Displays the current sync state at the bottom of the card.
Figure 1. Connected Systems Card
Sync a Connection
Auditoria keeps connected systems in sync in two ways:
- Automated sync: Auditoria automatically syncs each connection every 4 hours.
- Manual sync: You can trigger a sync on demand for a specific connection from the Connected Systems view.
Trigger a manual sync
- On the Connected Systems view, locate the connection card you want to sync.
- Click the sync (refresh) icon on the card. The tooltip Initiate Sync Now appears on hover.
- The sync status bar at the bottom of the card changes to Sync in Progress (purple).
- When the sync finishes, the status bar changes to Sync Completed (green), and the Last Sync field updates with the current date and time.
Figure 2. Initiate Sync Now and Sync in Progress status
Sync status bar
The sync status bar at the bottom of each card reflects the outcome of the most recent sync.
Table 2. Sync status bar states
| Status | Color | Description |
|---|---|---|
| Sync in Progress | Purple | A sync is currently running for this connection. |
| Sync Completed | Green | The most recent sync completed successfully. |
| Sync Interrupted | Red | The most recent sync did not complete successfully. Review the connection settings and trigger a manual sync to retry. |
Figure 3. Sync Interrupted status
Note: If a connection repeatedly shows Sync Interrupted, verify that the credentials and host details on the connection are correct and that the source system is reachable. Use Update on the connection card to review or modify the configuration.
Delete a Connection
- On the Connected Systems view, locate the connection card you want to delete.
- Click the delete (trash) icon on the card.
- In the confirmation dialog, review the message: This will delete all the data, records, and transactions which were read from this ERP. Are you sure you want to proceed?
- Click Delete to confirm, or click Cancel to keep the connection.

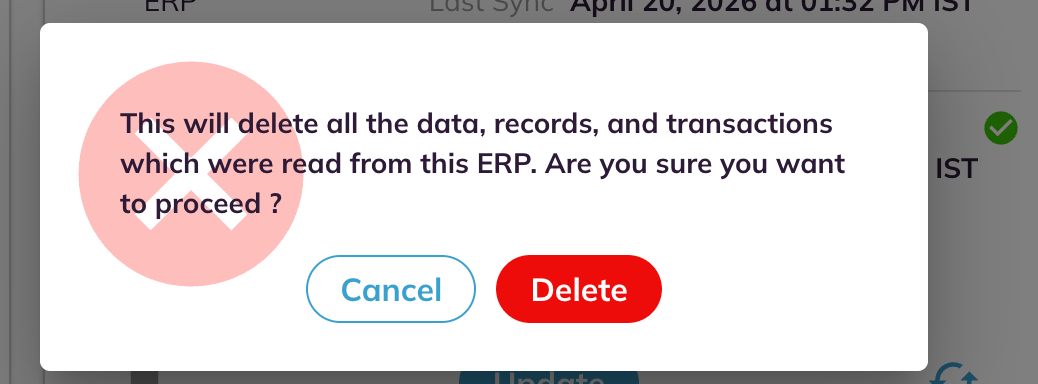

Figure 4. Delete connection confirmation
Important: Deleting a connection removes all data, records, and transactions that were read from this system through Auditoria. This action cannot be undone.
Return to Add New Connection
To return to the Add New Connection view, click Add New Connection in the top-right corner of the page.
